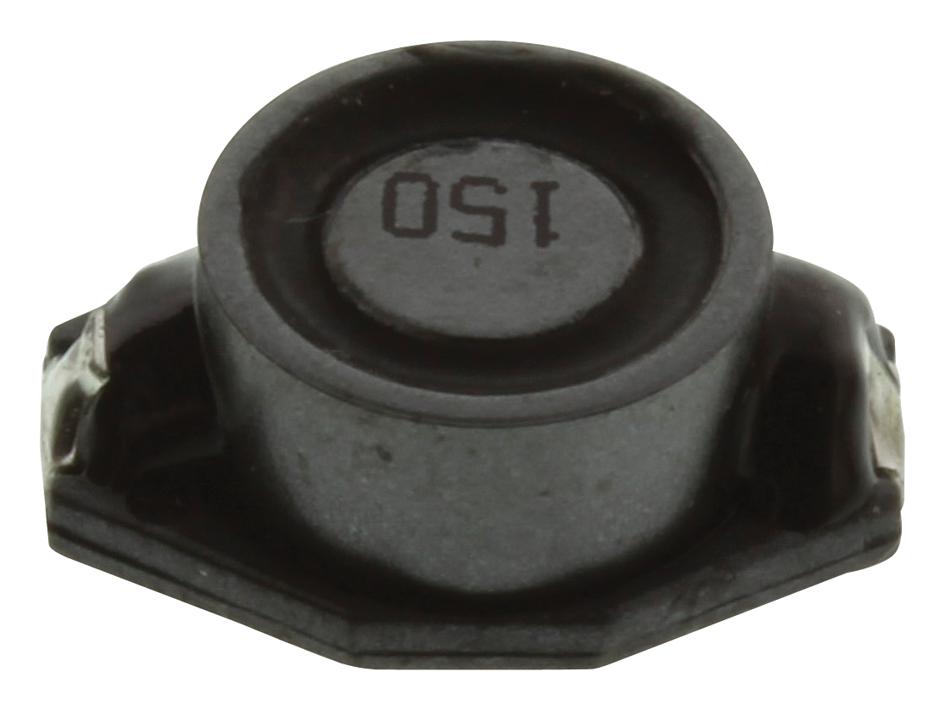

MULTICOMP PRO - MCBFS5220-150MU - Power Inductor (SMD), 15 µH, 2.2 A, Shielded, MCBF
- Inductance: 15µH
- RMS Current (Irms): 2.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): -
- Product Range: MCBF Series
- Power Inductor Case: 12.95mm x 9.5mm x 5.2mm
- DC Resistance Max: 0.14ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 5.2mm
- External Length / Height: 12.95mm
- External Width: 9.5mm
- Lead Spacing: 7.62mm
- No. of Pins: 2Pins
