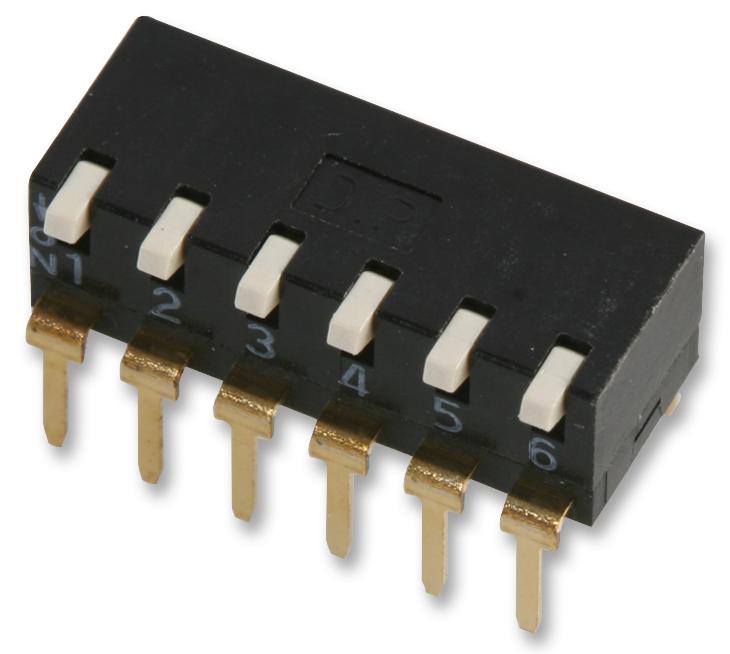

MULTICOMP PRO - MCEPI-06 - DIP / SIP Switch, 6 Circuits, Piano Key, Through Hole, SPST, 24 VDC, 25 mA
- No. of Circuits: 6Circuits
- Switch Actuator Style: Piano Key
- Switch Mounting: Through Hole
- Contact Configuration: SPST
- Contact Voltage DC Max: 24VDC
- Contact Current DC Max: 25mA
- Product Range: MCEP Series
- Switch Type: DIP
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Piano Key
- Actuator Type: Piano Key
- Contact Resistance: 100mohm
- Contact Resistance Voltage: 500VDC
- Current Rating: 25mA
- Dielectric Strength VDC: 500VAC
- External Depth: 6mm
- External Length / Height: 5mm
- External Width: 15.14mm
- Flammability Rating: UL94V-0
- Height: 5mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 2.54mm
- No. of Electrical Operations: 2000
- No. of Mechanical Operations: 2000
- No. of Pins: 4Pins
- No. of Positions: 6Ways
- Operating Force Max: 800gf
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Pin Configuration: DIL
- Pitch Spacing: 2.54mm
- Row Pitch: 7.62mm
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Terminal Plating: Gold
