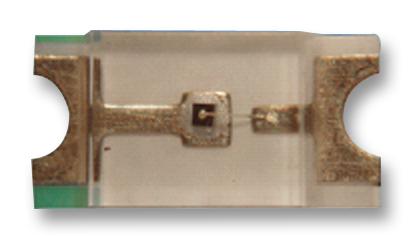

MULTICOMP PRO - MCL-S250SBLC - LED, Blue, SMD, 1206 (3216 Metric), 20 mA, 3.4 V, 472 nm
- LED Colour: Blue
- LED Mounting: SMD
- LED Case Size: 1206 (3216 Metric)
- Forward Current If: 20mA
- Forward Voltage: 3.4V
- Wavelength Typ: 472nm
- Luminous Intensity: 65mcd
- Viewing Angle: 140°
- Lens Shape: Rectangular
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 1.6mm x 2mm
- Current Rating: 20mA
- Dominant Wavelength: 472nm
- Dominant Wavelength Typ: 472nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- LED / Lamp Size: 2mm x 1.6mm
- LED Type: Standard
- Luminous Intensity Max: 98mcd
- Luminous Intensity Min: 32mcd
- Luminous Intensity Typ: 65mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 100mA
- Peak Wavelength: 470nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: -40°C
- Storage Temperature Min: +100°C
- Voltage Vf Min: 2.7V
- Voltage Vf Typ: 3.4V
