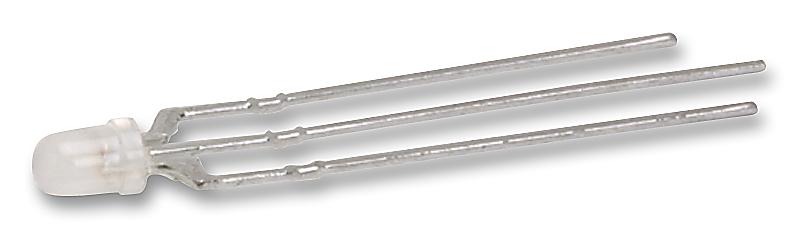

MCL039AGW LED, 3mm, Org/GRN multicomp Pro

MULTICOMP PROUGS :MCL039AGW Code de commande:1581195

Prix:
Prix ​​promotionnel€0,43

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2713 unité)

Documents et téléchargements

description

MULTICOMP PRO - MCL039AGW - LED, Green, Orange, Through Hole, T-1 (3mm), 76 °, Round, O 20mA, G 20mA

  • LED Colour: Green, Orange
  • LED Mounting: Through Hole
  • Bulb Size: T-1 (3mm)
  • Viewing Angle: 76°
  • Lens Shape: Round
  • Forward Current / Colour: O 20mA, G 20mA
  • Luminous Intensity / Colour: O 8.2mcd, G 8mcd
  • Forward Voltage / Colour: O 2V, G 2.1V
  • Wavelength / Colour: O 625nm, G 570nm
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Colour 1 Material: GaAsP on GaP
  • Colour 2 material: GaP
  • Dominant Wavelength: 625nm
  • Forward Voltage VF Max: 2.6V
  • LED Type: Standard
  • No. of Pins: 3Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
