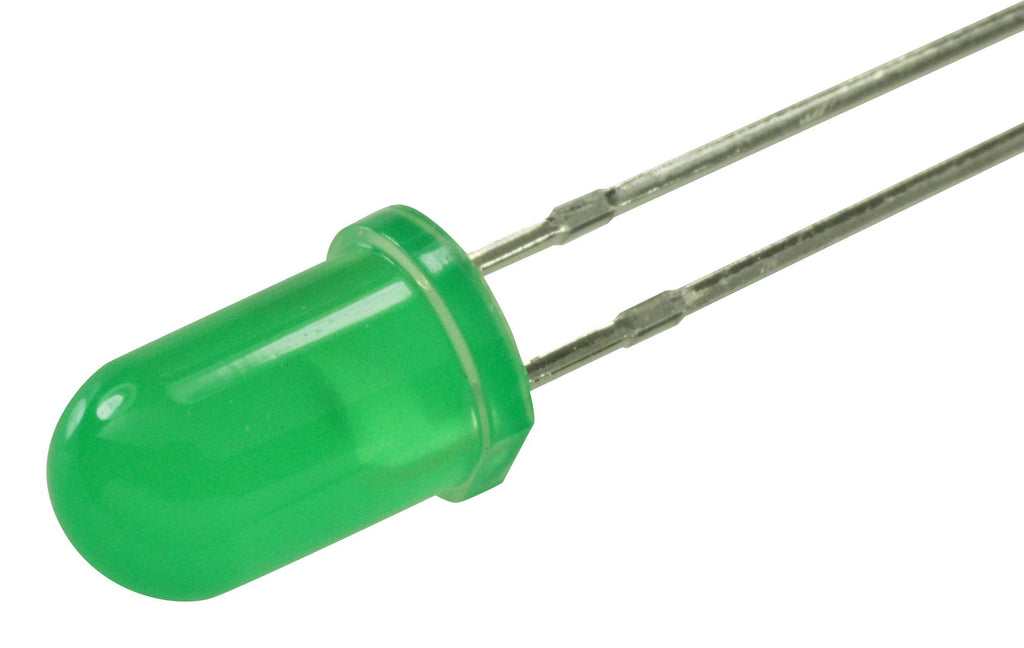

MULTICOMP PRO - MCL053LGD - LED, Green, Through Hole, T-1 3/4 (5mm), 20 mA, 1.9 V, 570 nm
- LED Colour: Green
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 1.9V
- Wavelength Typ: 570nm
- Luminous Intensity: 7mcd
- Viewing Angle: 45°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: T-1 3/4 (5mm)
- Current Rating: 20mA
- Dominant Wavelength: 570nm
- Dominant Wavelength Typ: 570nm
- Forward Current If Max: 5mA
- Forward Voltage VF Max: 2.3V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Luminous Intensity Max: 11mcd
- Luminous Intensity Min: 4mcd
- Luminous Intensity Typ: 7mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 100mA
- Peak Wavelength: 568nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: +100°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 1.6V
- Voltage Vf Typ: 1.9V
