MCNP100V335M6.3X11 Cap, 3.3µF, 100V, 20% multicomp Pro

MULTICOMP PROUGS :MCNP100V335M6.3X11 Code de commande:1236688

Prix:
Prix ​​promotionnel€0,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3555 unité)

Documents et téléchargements

description

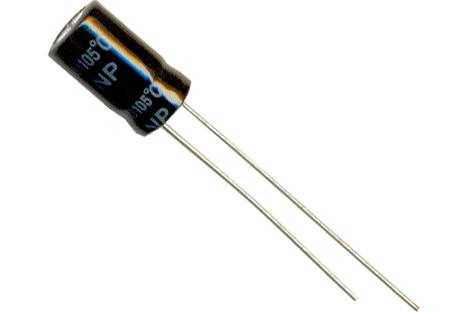

MULTICOMP PRO - MCNP100V335M6.3X11 - Electrolytic Capacitor, 3.3 µF, 100 V, ± 20%, Radial Leaded, 2000 hours @ 85°C

  • Capacitance: 3.3µF
  • Voltage Rating: 100V
  • Product Range: MCNP Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 6.3mm
  • Lead Spacing: 2.5mm
  • Height: 11mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 2000 hours @ 85°C
  • ESR: -
  • Automotive Qualification Standard: -
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Application: Bipolar
  • External Length / Height: 11mm
  • Lead Diameter: 0.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 2000h
  • Ripple Current AC: 35mA
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 100V
