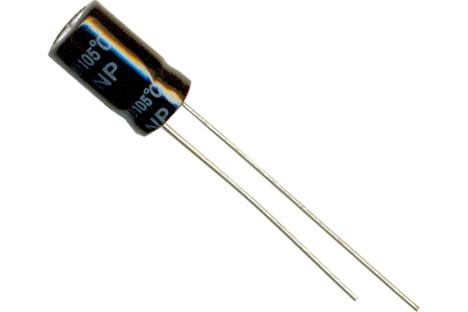

MULTICOMP PRO - MCNP63V226M8X11.5 - Electrolytic Capacitor, 22 µF, 63 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Bi-Polar [Non-Polar]
- Capacitance: 22µF
- Voltage Rating: 63V
- Product Range: MCNP Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 8mm
- Lead Spacing: 3.5mm
- Height: 11.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: -
- Capacitance Tolerance ±: ± 20%
- Capacitor Application: Bipolar
- External Length / Height: 11.5mm
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Ripple Current AC: 90mA
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 63V
