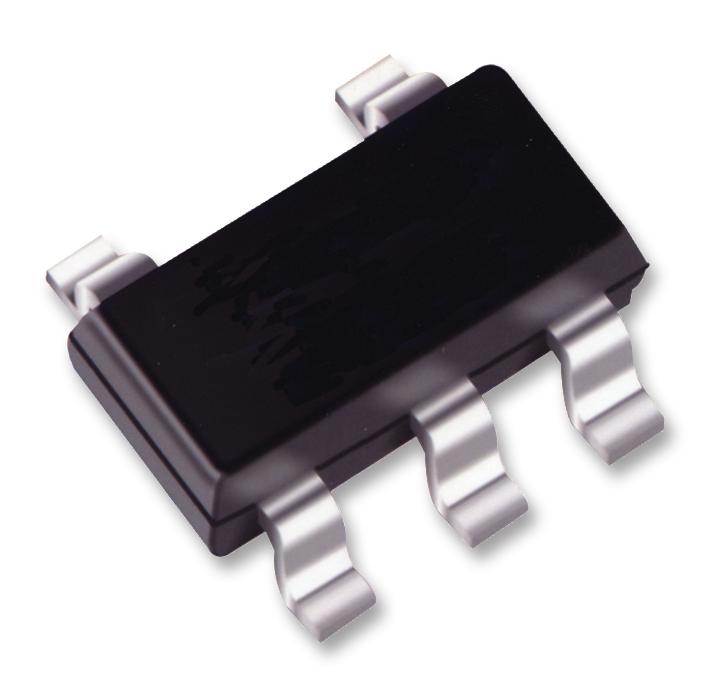

MICROCHIP - MCP1824T-ADJE/OT - LDO Voltage Regulator, Adjustable, 2.1V to 6V in, 200mV drop, 800mV to 0.8V/300mA out, SOT-23-5
- Output Type: Adjustable
- Input Voltage Min: 2.1V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 800mV
- Adjustable Output Voltage Max: 5V
- Output Current: 300mA
- Dropout Voltage Vdo: 200mV
- LDO Regulator Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 0.4%
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 0.3A
- Output Voltage Adjustable Range: 800mV to 5V
- Output Voltage Max: 5V
- Output Voltage Min: 800mV
- Primary Input Voltage: 6V
- Supply Voltage Min: 2.1V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Adjustable
