MOX93025004FVE Res, 5m, 1%, 7.5W, Axial, Metal Film OHMITE

OHMITEUGS :MOX93025004FVE Code de commande:1550800

Prix:
Prix ​​promotionnel€60,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (115 unité)

Documents et téléchargements

description

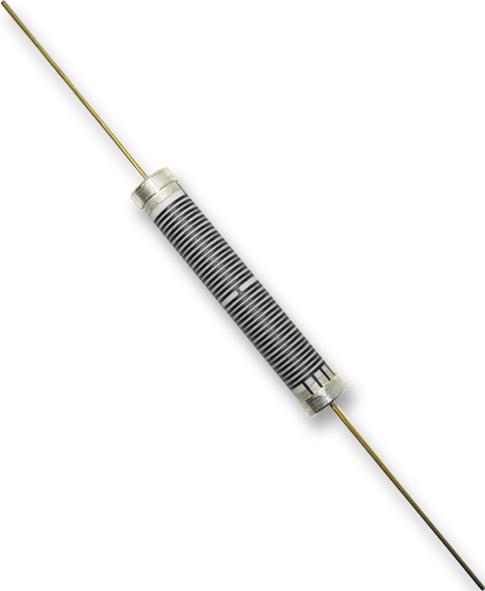

OHMITE - MOX93025004FVE - Through Hole Resistor, 5 Mohm, Maxi-Mox, 7.5 W, ± 1%, Axial Leaded, 30 kV

  • Resistance: 5Mohm
  • Product Range: Maxi-Mox Series
  • Power Rating: 7.5W
  • Resistance Tolerance: ± 1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 30kV
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 50ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 8mm
  • External Length / Height: 52mm
  • Height: 52mm
  • Lead Diameter: 0.8mm
  • Lead Length: 35mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 225°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +225°C
  • Resistor Mounting: Through Hole
