MR/P/440/2/B Cap, 2µF, 440VAC, 10%, PP, Can, Panel LCR Components

LCR COMPONENTSUGS :MR/P/440/2/B Code de commande:1190562

Prix:
Prix ​​promotionnel€4,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (285 unité)

Documents et téléchargements

description

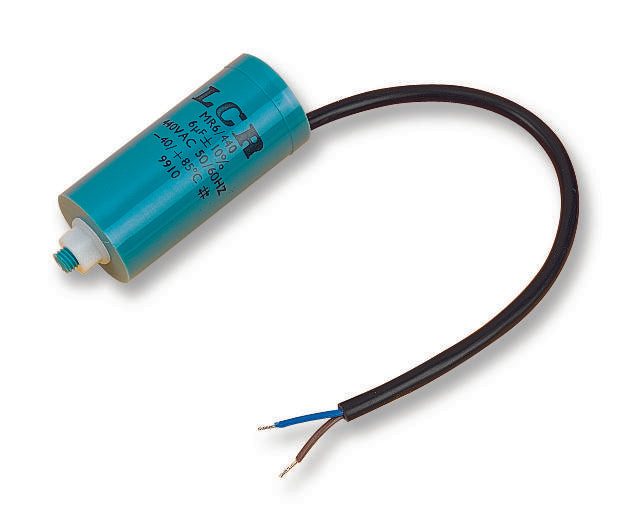

LCR COMPONENTS - MR/P/440/2/B - Motor Run Capacitor, Metallized PP, Can, 2 µF, ± 10%, Stud Mount - M8, 440 V

  • Capacitance: 2µF
  • Product Range: MR/P/440 Series
  • Voltage Rating: 440VAC
  • Capacitor Terminals: Wire Leaded
  • Capacitance Tolerance: ± 10%
  • dv/dt Rating: -
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitor Case Style: Can
  • Height: 56mm
  • Diameter: 30mm
  • Stud Size - Metric: M8
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 30mm
  • Capacitance Tolerance ±: ± 10%
  • Capacitor Application: Motor Start / Motor Run
  • Capacitor Mounting: Panel
  • External Length / Height: 55mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -25°C to +85°C
  • Power Factor: 0.001
  • Thread Size: M8x12
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Voltage Rating VAC: 440V
