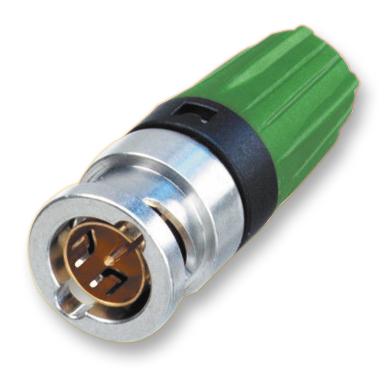

NEUTRIK - NBNC75BFG7. - RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 75 ohm
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 75ohm
- Coaxial Cable Types: Argosy Image 360, Belden 1855ENH, Canford SDV-S-LFH, Draka 0.6/2.8AF
- Contact Material: Brass
- Contact Plating: -
- Frequency Max: -
- Connector Mounting: Cable Mount
- Product Range: rearTWIST Series
- SVHC: No SVHC (27-Jun-2018)
- Cable Diameter Max: 7.7mm
- Centre Contact Resistance: 3mohm
- Coaxial Type: CVI 06-28
- Connector Mounting Orientation: Cable
- Contact Resistance Min: 5Gohm
- No. of Mating Cycles: 1000
- Operating Temperature Max: 85°C
- Operating Temperature Min: 30°C
- Outer Contact Resistance: 2mohm
- Proof Voltage: 1500VAC
- Termination Method: Crimp
- VSWR: 1.050
- Voltage Rating VAC: 500V
