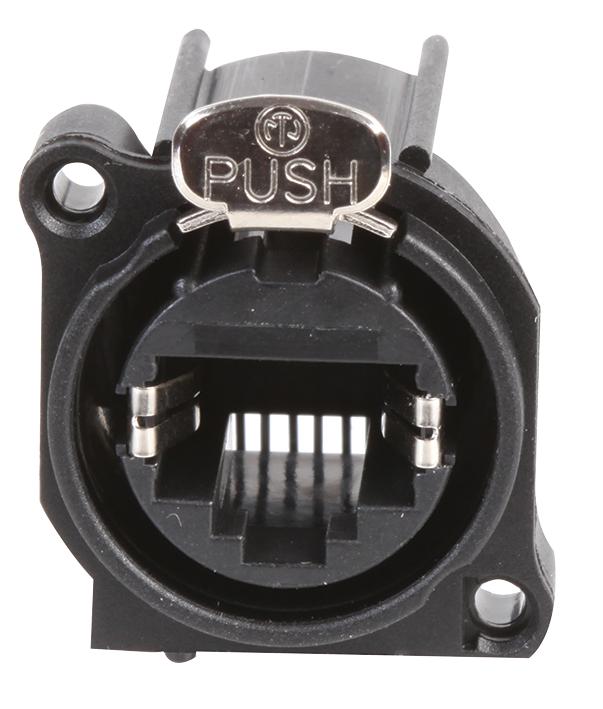

NEUTRIK - NE8FAH - Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Through Hole Mount
- Connector Type: RJ45
- Connector Mounting: Through Hole Mount
- Gender: Receptacle
- Product Range: etherCON A Series
- No. of Contacts: 8 Contact
- Contact Plating: Gold Plated Contacts
- Contact Material: Copper
- SVHC: No SVHC (27-Jun-2018)
- Case Material: Galvanised Nickel
- Connector Orientation: Right Angle
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1.5A
- Insulator Material: PBT (Polybutylene Terephthalate)
- LEDs: Without LED
- Light Pipes: Without Light Pipe
- Lower Frequency Bandwidth: 1MHz
- Magnetics: Without Magnetics
- Modular Connector Type: RJ45 Jack
- No. of Contacts: 8Contacts
- No. of Ports: 1Ports
- No. of Positions: 8Ways
- No. of Positions / Loaded Contacts (per Port): 8P8C
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Port Configuration: 1 x 1 Port
- Shielding: Unshielded
- Upper Frequency Bandwidth: 100MHz
