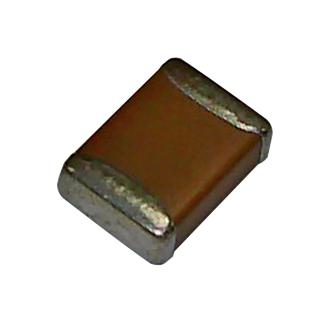

NTCS0603E3223FMT Thermistor, NTC, 0603, 22K Vishay

VISHAYUGS :NTCS0603E3223FMT Code de commande:1761152

Prix:
Prix ​​promotionnel€1,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1674 unité)

Documents et téléchargements

description

VISHAY - NTCS0603E3223FMT - Thermistor, NTC, 22 kohm, NTCS Series, 3730 K, SMD, 0603 [1608 Metric]

  • Zero Power Resistance at 25°C: 22kohm
  • Product Range: NTCS Series
  • Thermistor Mounting: SMD
  • Beta Value (K): 3730K
  • Thermistor Case Style: 0603 [1608 Metric]
  • Thermistor Terminals: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
  • Automotive Qualification Standard: AEC-Q200
  • Beta Value Lower Limit Temperature: 25°C
  • External Depth: 0.8mm
  • External Length / Height: 0.8mm
  • External Width: 1.6mm
  • Operating Temperature Range: -40°C to +150°C
  • Power Dissipation Pd: 125mW
  • Reel Quantity: 4000
  • Resistance: 22kohm
  • Resistance Tolerance: ± 1%
  • Temperature Upper Limit Beta Value: 85°C
  • Thermistor Tolerance: -1% to +1%
  • Thermistor Type: NTC
