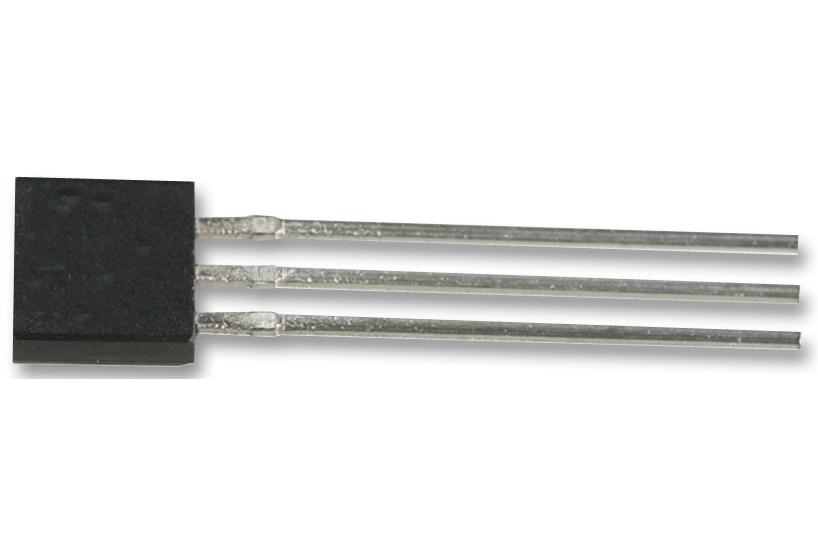

OHS3030U Ic, Hall Effect Switch, 3030, Sil-3 TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OHS3030U Code de commande:1202504

Prix:
Prix ​​promotionnel€12,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1669 unité)

Documents et téléchargements

description

TT ELECTRONICS / OPTEK TECHNOLOGY - OHS3030U - Hall Effect Sensor, Unipolar, 21 mA, SIP, 3 Pins, 4.5 V, 24 V

  • Hall Effect Type: Unipolar
  • Output Current: 21mA
  • Sensor Case Style: SIP
  • No. of Pins: 3Pins
  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 24V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Base Number: 3030
  • Bop Max: 250G
  • IC Generic Number: 3030
  • Logic Function Number: 3030
  • Operate Point Typ: 205G
  • Operating Temperature Range: -40°C to +125°C
  • Release Point Typ: 160G
  • Supply Voltage Range: 4.5V to 24V
  • Termination Type: Through Hole
