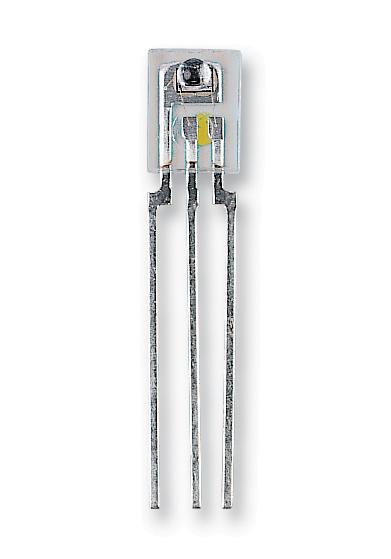

OPL551 Photodiode, Logic O/P TT Electronics / OPTEK Technology

TT ELECTRONICS / OPTEK TECHNOLOGYUGS :OPL551 Code de commande:3167525

Prix:
Prix ​​promotionnel€3,15

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (618 unité)

Documents et téléchargements

description

TT ELECTRONICS / OPTEK TECHNOLOGY - OPL551 - Optical Sensor, OPL551 Series, Photologic®, Totem Pole, 4.5 V to 5.5 V

  • Sensor Output: Totem Pole
  • Sensing Range Max: -
  • Supply Voltage DC Min: 4.5V
  • Supply Voltage DC Max: 5.5V
  • Output Current: 16mA
  • Product Range: OPL551 Series
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 2.35mm
  • External Length / Height: 5.71mm
  • External Width: 4.44mm
  • Fall Time tf: 25ns
  • No. of Pins: 3Pins
  • Nom Voltage Voh: 3.3V
  • Nom Voltage Vol: 0.25V
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Wavelength: 890nm
  • Release Point Irradiance: 10mW/cm²
  • Rise Time: 25ns
  • Sensitivity: 2.4mW/cm²
  • Supply Voltage Range DC: 4.5V to 5.5V
  • Threshold Irradiance Max: 2.4mW/cm²
  • Threshold Irradiance Min: 0.25mW/cm²
  • Voltage Vcc Max: 5.5V
  • Voltage Vcc Min: 4.5V
  • Voltage Voh Min: 2.4V
  • Voltage Vol Max: 0.4V
