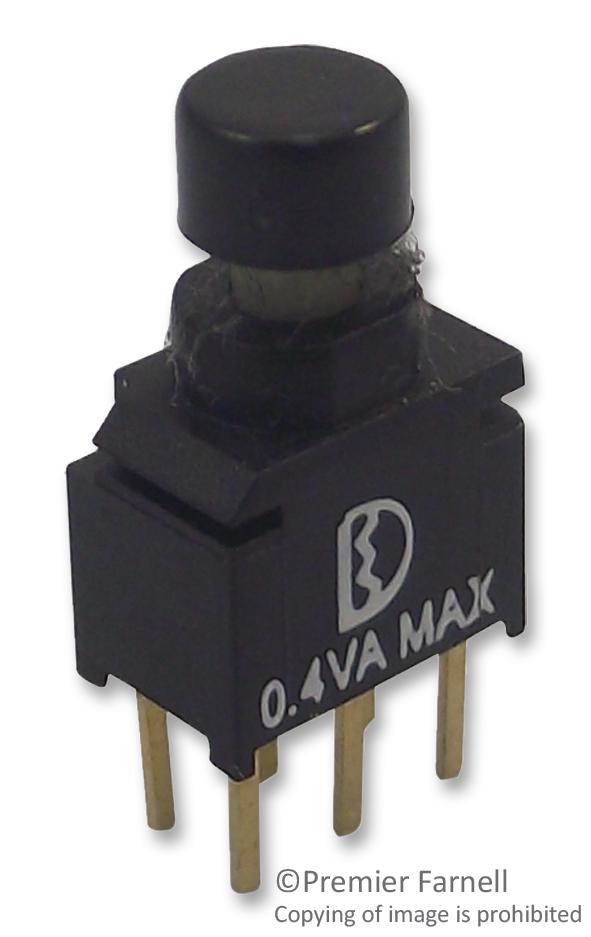

MULTICOMP PRO - P8UD8WR2C2M2RES - Pushbutton Switch, DPDT, On-(On), Round, Black
- Switch Operation: On-(On)
- Contact Configuration: DPDT
- Contact Voltage AC Nom: 20V
- Contact Voltage DC Nom: 20V
- Contact Current Max: 100mA
- Switch Terminals: PC Pin
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- AC Power: 0.4VA
- Actuation Type: Round
- Actuator / Cap Colour: Black
- Bush Length: 1.6mm
- Colour: Black Cap
- Contact Resistance: 50mohm
- Contact Voltage VAC: 20V
- Contact Voltage VDC: 20V
- DC Power: 0.4VA
- External Depth: 4.5mm
- External Length / Height: 5.8mm
- External Width: 7mm
- Flammability Rating: UL 94V-0
- IP / NEMA Rating: IP67
- Illumination Colour: Non-illuminated
- Insulation Resistance: 500Mohm
- Material: Glass Filled Nylon
- No. of Mechanical Operations: 40000
- Operating Temperature Max: 85°C
- Operating Temperature Min: -30°C
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Standard
- Switch Mounting: Through Hole
- Termination Method: Through Hole
