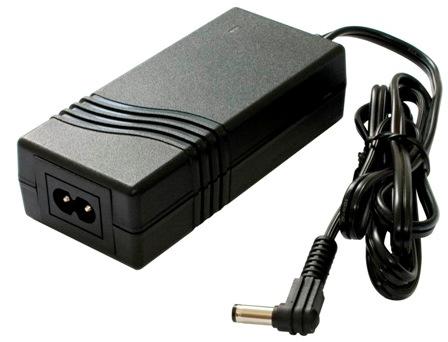

XP POWER - PDM30US18 - AC/DC Power Supply, Medical, 1 Output, 30 W, 18 V, 1.65 A
- No. of Outputs: 1 Output
- Output Power Max: 30W
- Output Voltage - Output 1: 18V
- Output Current - Output 1: 1.65A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Connector: Barrel Plug Center Positive 2.5mm x 5.5mm x 12mm
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 80V AC to 264V AC
- Product Range: -
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: EN 55011, EN 60601, IEC 60601, UL 60601
- Efficiency: 83%
- External Depth: 110mm
- External Length / Height: 30mm
- External Width: 50mm
- Height: 30mm
- Input Current: 0.6mA
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 80V
- Isolation Voltage: 4000V
- Lead Length: 1.22m
- Length: 110mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 60°C
- Operating Temperature Min: 0°C
- Output Current Max: 1.65A
- Output Voltage Max: 23.1V
- Output Voltage Min: 20.9V
- Power Rating: 30W
- Power Supply Type: Switch Mode
