description

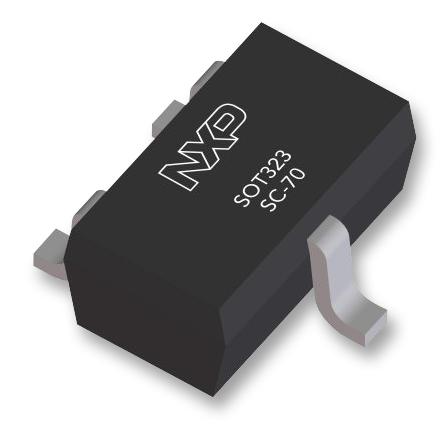

NEXPERIA - PDTC114EU,115 - Bipolar Pre-Biased / Digital Transistor, BRT, Single NPN, 50 V, 100 mA, 10 kohm, 10 kohm
- Digital Transistor Polarity: Single NPN
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 100mA
- Base Input Resistor R1: 10kohm
- Base-Emitter Resistor R2: 10kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: SOT-323
- No. of Pins: 3 Pin
- Product Range: PDTC114E Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Collector Emitter Saturation Voltage Vce(on): 150mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 5mA
- DC Collector Current: 100mA
- DC Current Gain hFE: 30hFE
- Full Power Rating Temperature: 25°C
- Hfe Min: 30
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Pd: 200mW
- Power Dissipation Ptot Max: 200mW
- Resistance R1: 10kohm
- Resistance R2: 10kohm
- Transistor Case Style: SOT-323
- Transistor Polarity: NPN
- Transistor Type: Bias Resistor (BRT)
- Voltage Vcbo: 50V
