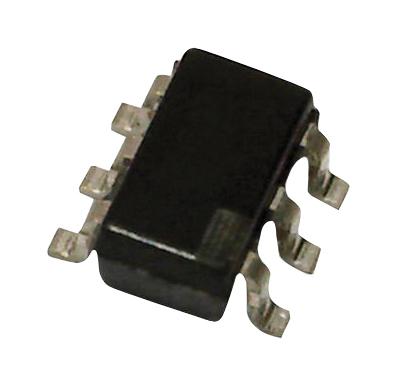

PIMN31,115 Transistor,NPN/NPN W/Res,50V,SOT457 NEXPERIA

NEXPERIAUGS :PIMN31,115 Code de commande:1829393

Prix:
Prix ​​promotionnel€0,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (233 unité)

Documents et téléchargements

description

NEXPERIA - PIMN31,115 - Bipolar Pre-Biased / Digital Transistor, Dual NPN, 50 V, 500 mA, 1 kohm, 10 kohm

  • Digital Transistor Polarity: Dual NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 500mA
  • Base Input Resistor R1: 1kohm
  • Base-Emitter Resistor R2: 10kohm
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-457
  • No. of Pins: 6 Pin
  • Product Range: PIMN31 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • DC Collector Current: 500mA
  • DC Current Gain hFE: 70hFE
  • Module Configuration: Dual
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 420mW
  • Transistor Case Style: SOT-457
  • Transistor Polarity: Dual NPN
