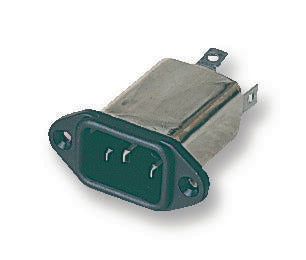

BULGIN LIMITED - PS00/A0620/6300 - High Power Connector, PS00, Plug, 250 V, 6 A, Panel Mount, Quick Connect
- Product Range: PS00 Series
- Gender: Plug
- Voltage Rating: 250V
- Current Rating: 6A
- Connector Mounting: Panel Mount
- Contact Termination Type: Quick Connect
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, SEMKO, UL, VDE
- Behind Panel Depth: 51mm
- Capacitance: 0.015µF
- Capacitance X: 0.015µF
- Capacitance Y: 2200pF
- External Depth: 56.9mm
- External Length / Height: 22.5mm
- External Width: 49.8mm
- Filter Terminals: Quick Connect
- Filter Type: IEC, Mains
- Fixing Centres: 40mm
- Inductance: 0.7mH
- Inductance Min: 700µH
- Leakage Current: 0.35mA
- Leakage Current Max: 0.35mA
- No. of Inductors: 2
- No. of Phases: Single Phase
- No. of X Type Capacitors: 1
- No. of Y Type Capacitors: 2
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Panel Cutout Depth: 28.5mm
- Panel Cutout Width: 21mm
- Supply Frequency Max: 400Hz
- Supply Frequency Min: 50Hz
- Voltage Rating VAC: 250V
