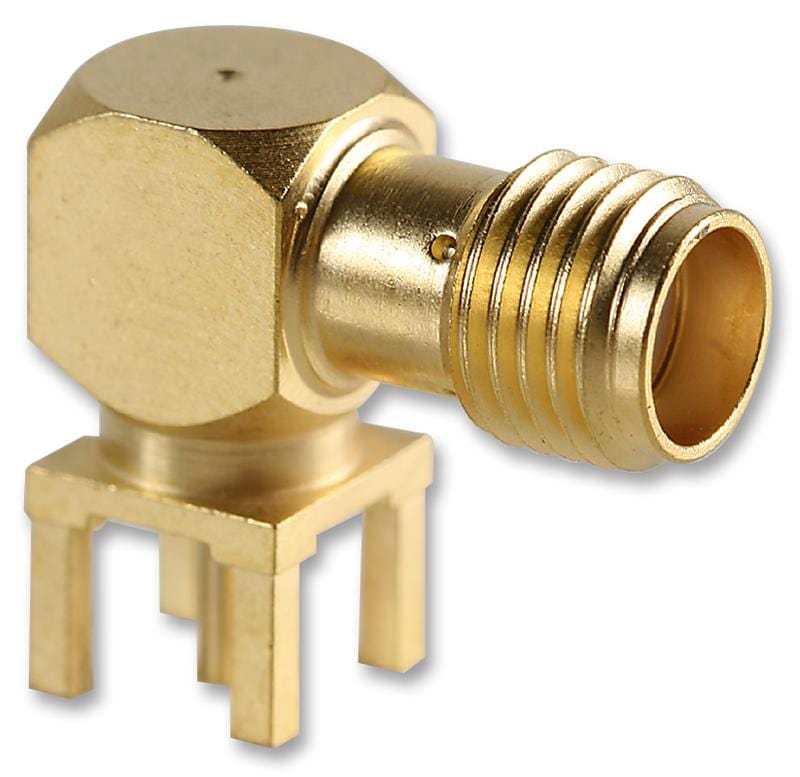

RADIALL - R125680000 - RF / Coaxial Connector, SMA Coaxial, Right Angle Jack, Solder, 50 ohm, Beryllium Copper
- Connector Type: SMA Coaxial
- Connector Body Style: Right Angle Jack
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 18GHz
- Connector Mounting: PCB Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Body Plating: Gold
- Connector Mounting Orientation: PC Board
- Insulation Resistance: 5000Mohm
- Material: Stainless Steel
- No. of Mating Cycles: 500
- Operating Frequency Max: 18kHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Solder
- Voltage Rating VAC: 500V
- Withstand Voltage: 1000V
