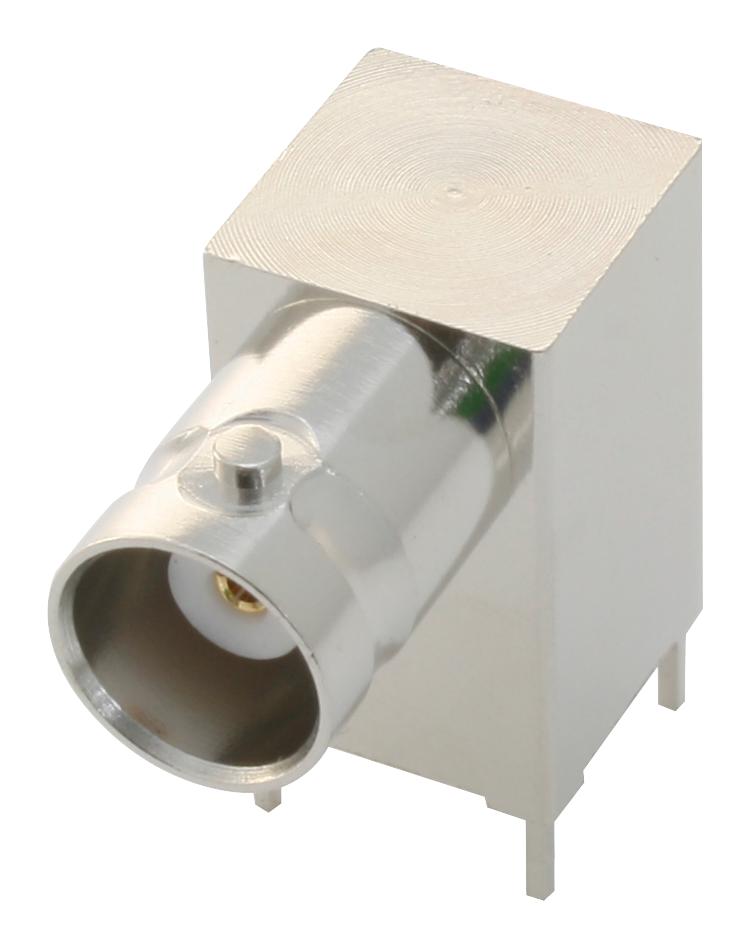

R141665200 RF Coaxial, BNC, Right Angle Jack, 50ohm RADIALL

RADIALLUGS :R141665200 Code de commande:1775180

Prix:
Prix ​​promotionnel€10,91

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (565 unité)

Documents et téléchargements

description

RADIALL - R141665200 - RF / Coaxial Connector, BNC Coaxial, Right Angle Jack, Through Hole Right Angle, 50 ohm, Bronze

  • Connector Type: BNC Coaxial
  • Connector Body Style: Right Angle Jack
  • Coaxial Termination: Through Hole Right Angle
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Bronze
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 1.5GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Nickel
  • Connector Mounting Orientation: PCB
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -35°C
  • Termination Method: Solder
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1500V
