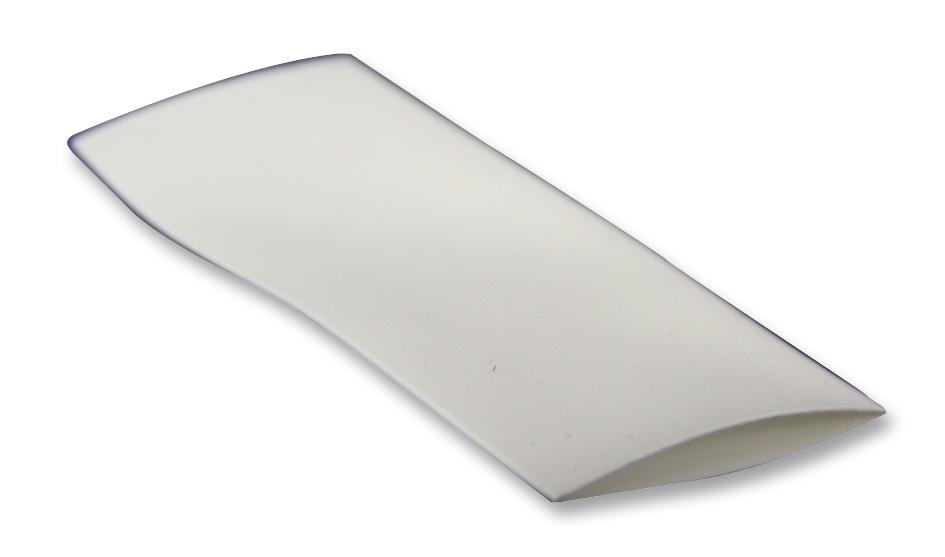

RAYCHEM - TE CONNECTIVITY - RPS-16-10/2.0-9 - Wire Marker, RPS Thin Wall, Heat Shrinkable Sleeve, PO (Polyolefin), White, 6.35 mm
- Marker Type: Heat Shrinkable Sleeve
- Legend: -
- Marker Material: PO (Polyolefin)
- Marker Colour: White
- Marker Dimensions: -
- I.D. Max: 6.35mm
- I.D. Min: 2.11mm
- Shrink Ratio: 3
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Accessory Type: Heat Shrink
- Background Colour: White
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 6.4mm
- Cable Diameter Min: 2.1mm
- Colour: White
- External Length / Height: 50.8mm
- Flammability Rating: UL224/VW1
- For Use With: AM6310-Dot Matrix, T312M, T208M Thermal Transfer Printers
- Fully Shrunk Diameter: 2.1mm
- I.D. Max Recovered: 2.1mm
- I.D. Supplied: 6.4mm
- Internal Diameter: 6.4mm
- Length, Imperial: 2"
- Material: Polyolefin
- Operating Temperature Max: 105°C
- Operating Temperature Min: -30°C
- Shrink Tubing / Boot Colour: White
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Shrink Type: Heat
- Tensile Strength (psi): 1200psi
- Total Length - Metric: 50.8mm
- Unshrunk Diameter: 6.4mm
