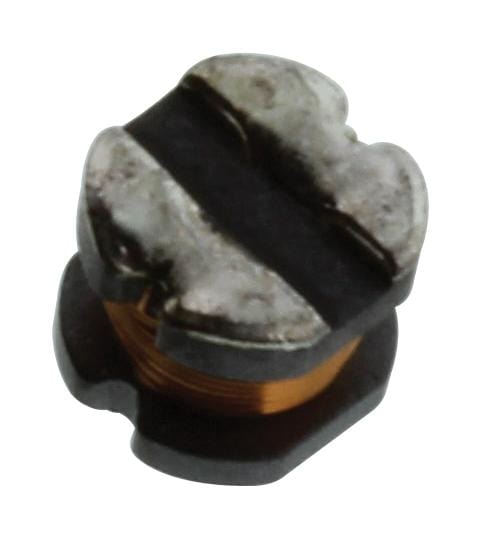

BOURNS - SDR0302-3R9ML - Power Inductor (SMD), 3.9 µH, 1.3 A, Unshielded, 1.5 A, SDR0302
- Inductance: 3.9µH
- RMS Current (Irms): 1.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.5A
- Product Range: SDR0302 Series
- Power Inductor Case: 3mm x 2.8mm x 2.5mm
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2018)
- Q Factor: 24
- Q Test Frequency: 7.96MHz
- Self Resonant Frequency Min: 50MHz
