description

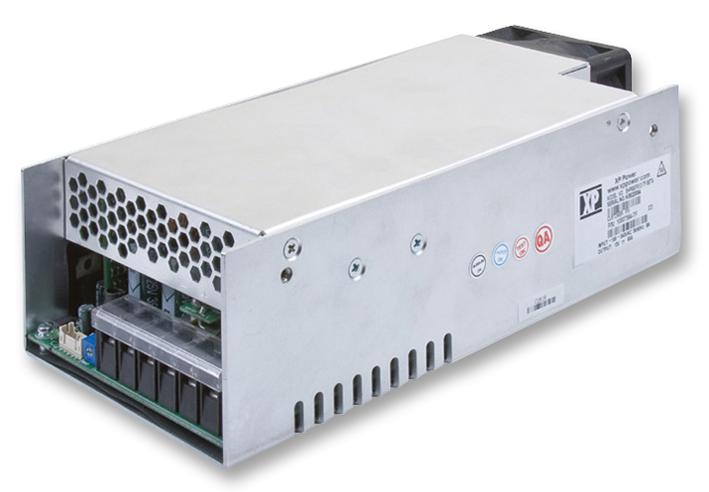

XP POWER - SHP650PS24-EF - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 655 W, 24 V, 27 A, 12 V
- No. of Outputs: 1Outputs
- Output Power Max: 655W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 27A
- Output Voltage - Output 2: 12V
- Output Current - Output 2: 500mA
- Output Voltage - Output 3: 5V
- Output Current - Output 3: 200mA
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 80V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: SHP Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- External Depth: 101.6mm
- External Length / Height: 63.5mm
- External Width: 233.2mm
- Height: 63.5mm
- Input Voltage: 85V AC to 264V AC
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 80V
- Length: 101.6mm
- No. of Outputs: 1 Output
- Output Current Max: 27A
- Power Rating: 657W
- Power Supply Type: Enclosed
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 233.2mm
