SM20WL3TK6 Circular Contact, Pin, 22-20 AWG, Crimp Souriau-SUNBANK / Eaton

SOURIAU-SUNBANK / EATONUGS :SM20WL3TK6 Code de commande:3652348

Prix:
Prix ​​promotionnel€2,74

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (121 unité)

Documents et téléchargements

description

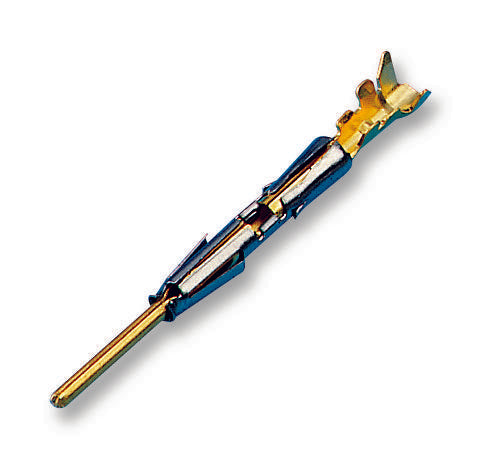

SOURIAU-SUNBANK / EATON - SM20WL3TK6 - Circular Connector Contact, Stamped, Souriau Trim Trio, Pin, Crimp, 20 AWG, 22 AWG

  • Product Range: Trim Trio Series
  • Contact Gender: Pin
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 20AWG
  • Wire Size AWG Min: 22AWG
  • For Use With: UTO, UTS Connectors
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: Lead (15-Jan-2019)
  • Cable Diameter Max: 2.1mm
  • Cable Diameter Min: 1.2mm
  • Contact Resistance: 15mohm
  • Contact Size: 20
  • Contact Termination: Crimp
  • Current Rating: 5A
  • Wire Area Size Max: 0.5mm²
  • Wire Area Size Min: 0.32mm²
