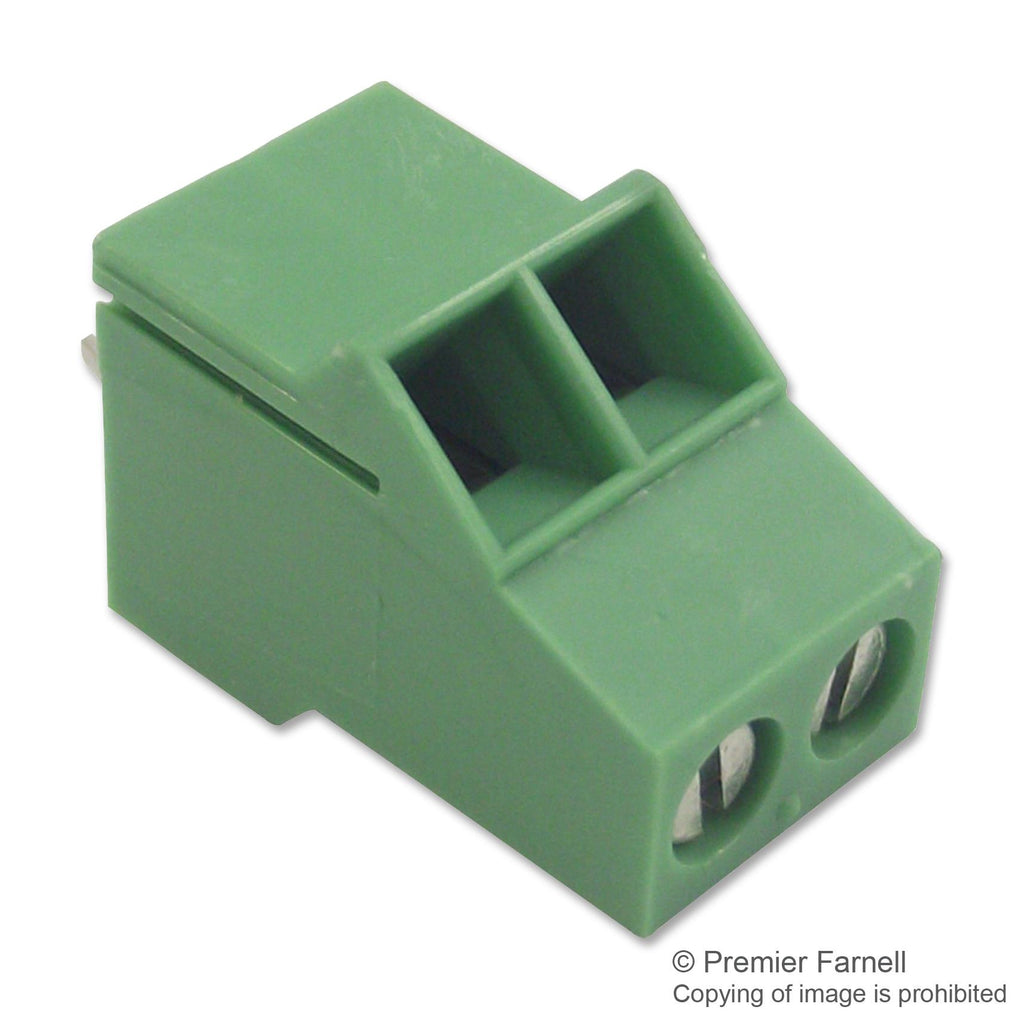

PHOENIX CONTACT - SMKDS 2,5/ 2-5,08 - Wire-To-Board Terminal Block, 5.08 mm, 2 Ways, 26 AWG, 14 AWG, 2.5 mm², Screw
- Pitch Spacing: 5.08mm
- No. of Positions: 2Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 14AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 20A
- Rated Voltage: 400V
- Block Orientation: Through Hole 40°
- Product Range: SMKDS
- SVHC: Lead (15-Jan-2019)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- Voltage Rating VAC: 250V
- Wire Area Size Max: 2.5mm²
- Wire Area Size Min: 0.14mm²
