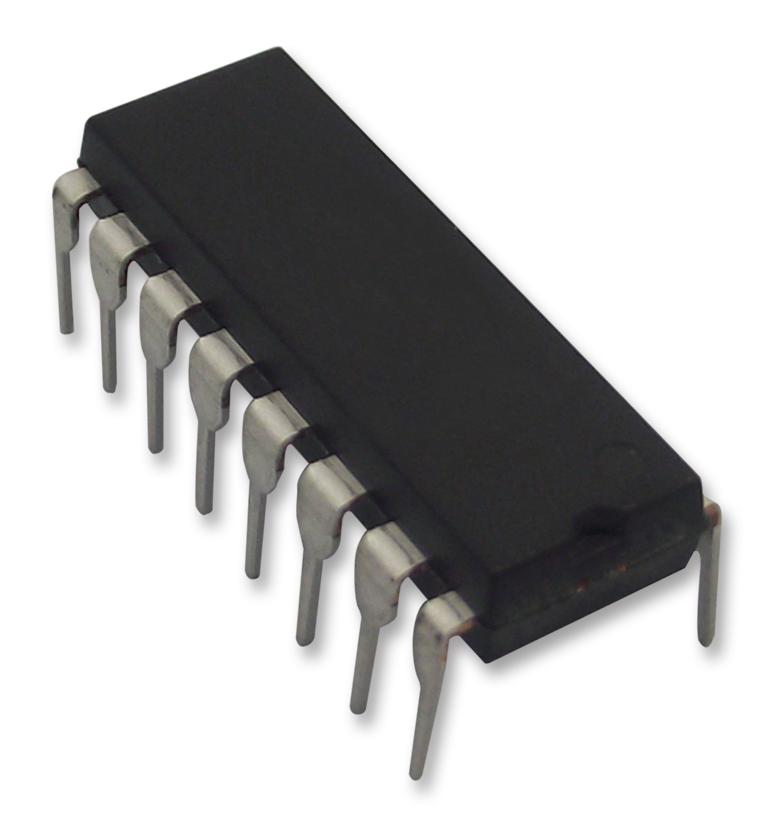

TEXAS INSTRUMENTS - SN74LS158N - Data Selector/Multiplexer, 74LS158 Family, 4 Channels, 2:1, 4.75V to 5.25V, DIP-16
- Logic Family / Base Number: 74LS158
- Logic Type: Data Selector / Multiplexer
- No. of Channels: 4Channels
- Line Configuration: 2
- Supply Voltage Min: 4.75V
- Supply Voltage Max: 5.25V
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Logic IC Family: 74LS
- Logic IC Base Number: 74158
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Logic Function Number: 74158
- Logic IC Base Number: 74158
- Logic IC Function: Quad 2-to-1 Line Data Selector / Multiplexer
- Operating Temperature Range: 0°C to +70°C
- Ratio: 2
- Supply Voltage Range: 4.75V to 5.25V
- Termination Type: Through Hole
