SP22E-1K Potentiometer, 1 Turn 1K OHM 1W ETI Systems

ETI SYSTEMSUGS :SP22E-1K Code de commande:1307134

Prix:
Prix ​​promotionnel€64,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documents et téléchargements

description

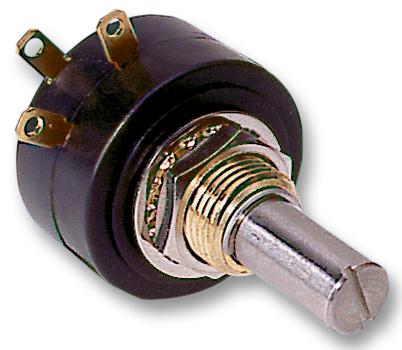

ETI SYSTEMS - SP22E-1K - Rotary Potentiometer, Conductive Plastic, 1 kohm, 1 Turns, Linear, 1 W, ± 10%, SP22E

  • Track Resistance: 1kohm
  • No. of Turns: 1Turns
  • Track Taper: Linear
  • Power Rating: 1W
  • Resistance Tolerance: ± 10%
  • Product Range: SP22E Series
  • Potentiometer Mounting: Panel
  • Shaft Diameter: 6.35mm
  • No. of Gangs: 1
  • Adjustment Type: Screwdriver Slot
  • Shaft Length: 20.3mm
  • SVHC: No SVHC (07-Jul-2017)
  • Body Diameter: 21.84mm
  • External Length / Height: 12.19mm
  • Linearity, +: 1%
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +105°C
  • Resistor Element Material: Conductive Plastic
  • Rotation Electrical Angle: 320°
  • Rotation Mechanical Angle: 320°
  • Rotational Life Cycles: 10000000
  • Temperature Coeff. +: 400ppm/°C
  • Temperature Coeff. -: 400ppm/°C
  • Temperature Coefficient: ± 400ppm/°C
  • Termination Type: Solder
  • Tolerance +: 10%
  • Tolerance -: 10%
