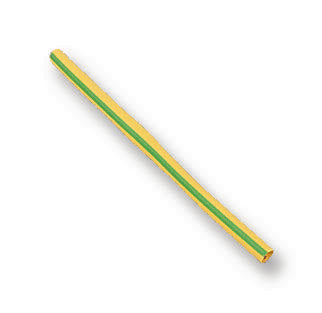

MULTICOMP PRO - SP32/1.2/GREEN/YEL - Heat Shrink Tubing, Flame Retardant, 2:1, 0.125 ", 3.2 mm, Green, Yellow, 3.9 ft, 1.2 m
- Shrink Ratio: 2
- I.D. Supplied - Imperial: 0.125"
- I.D. Supplied - Metric: 3.2mm
- Shrink Tubing / Boot Colour: Green, Yellow
- Length - Imperial: 3.94ft
- Length - Metric: 1.2m
- I.D. Recovered Max - Imperial: 0.062"
- I.D. Recovered Max - Metric: 1.6mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Product Range: SP Series
- SVHC: No SVHC (15-Jan-2019)
- Accessory Type: Heat Shrink
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 3.2mm
- Cable Diameter Min: 1.6mm
- Colour: Green / Yellow
- Dielectric Strength: 20kV/mm
- Flammability Rating: VW-1
- Fully Shrunk Diameter: 1.6mm
- I.D. Max Recovered: 1.6mm
- I.D. Supplied: 3.2mm
- Internal Diameter: 3.2mm
- Length, Imperial: 3.94ft
- Material: Irradiated Polyolefin
- Operating Temperature Max: 135°C
- Operating Temperature Min: -55°C
- Reel Length (Imperial): 3ft
- Reel Length (Metric): 1.2m
- Shrink Temperature: 100°C
- Shrink Type: Heat
- Unshrunk Diameter: 3.2mm
