description

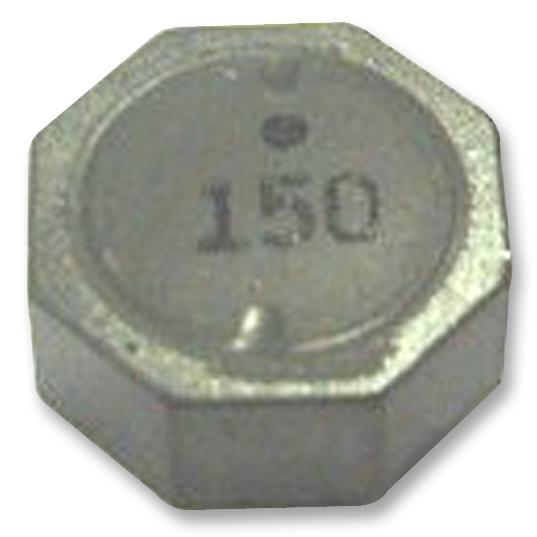

BOURNS - SRU1048-150Y - Power Inductor (SMD), 15 µH, 3.2 A, Shielded, 2.7 A, 10mm x 10mm x 4.8mm
- Inductance: 15µH
- RMS Current (Irms): 3.2A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.7A
- Product Range: -
- Power Inductor Case: 10mm x 10mm x 4.8mm
- DC Resistance Max: 0.029ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 4.8mm
- External Length / Height: 10mm
- External Width: 10mm
- Inductor Type: Shielded Power Choke
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Q Factor: 30
- Q Test Frequency: 2.52MHz
- Resonant Frequency: 14MHz
- Self Resonant Frequency Min: 14MHz
- Test Frequency: 2.52MHz
