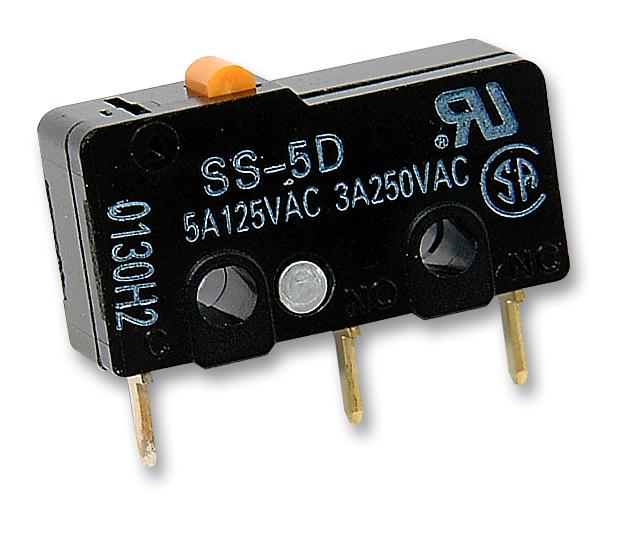

SS-5d Microswitch, v4, Pcb, Plunger Omron

OMRONUGS :SS-5D Code de commande:170566

Prix:
Prix ​​promotionnel€3,45

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1636 unité)

Documents et téléchargements

description

OMRON - SS-5D - Microswitch, Snap Action, Pin Plunger, SPDT, Solder, 5 A, 250 VDC

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Pin Plunger
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: 250VDC
  • Product Range: SS Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 1.47N
  • Actuation Type: Plunger
  • Actuator Type: Plunger
  • Contact Current AC: 3A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Rating: 3A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 250V
  • Differential Travel Max: 0.1mm
  • External Depth: 19.8mm
  • External Length / Height: 10.2mm
  • External Width: 6.4mm
  • Fixing Centres LxW: 9.5mm
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 30000000
  • Operating Force: 1.47N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -15°C
  • Over Travel Min: 0.5mm
  • Pre-travel: 0.5mm
  • Release Force: 25gf
