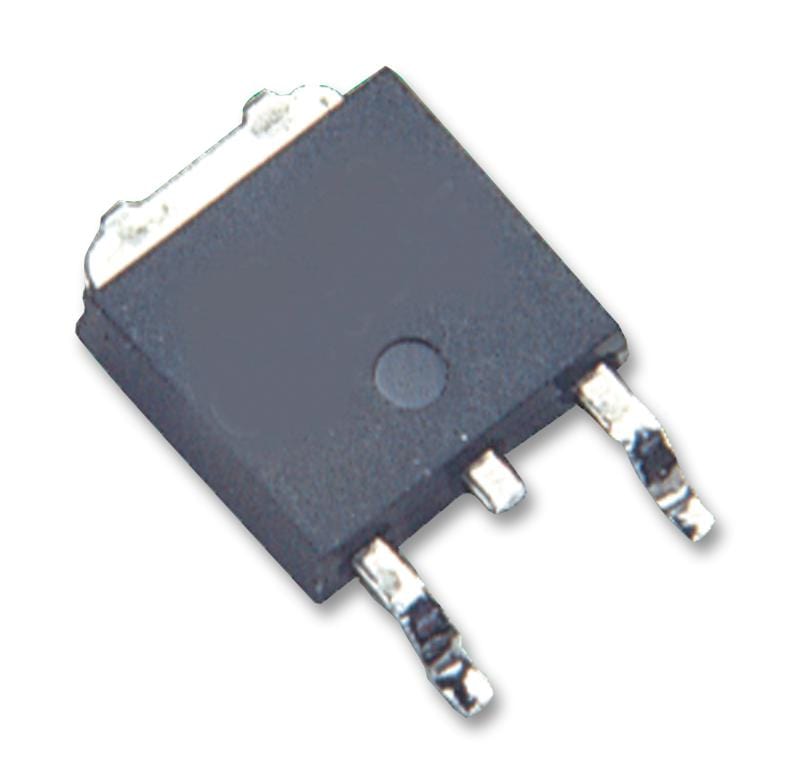

STMICROELECTRONICS - STPS20H100CG - Schottky Rectifier, 100 V, 20 A, Dual Common Cathode, TO-263 (D2PAK), 3 Pins, 640 mV
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 10A
- Diode Configuration: Dual Common Cathode
- Diode Case Style: TO-263
- No. of Pins: 3Pins
- Forward Voltage VF Max: 640mV
- Forward Surge Current Ifsm Max: 250A
- Operating Temperature Max: 175°C
- Product Range: STPS2 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Alternate Case Style: TO-262AB
- Current If @ Vf: 10A
- Current Ifsm: 250A
- Device Marking: STPS20H100CG
- Diode Type: Schottky
- Forward Current If Max: 10A
- Junction Temperature Tj Max: 175°C
- RMS Current If: 30A
- Semiconductor Technology: Si
