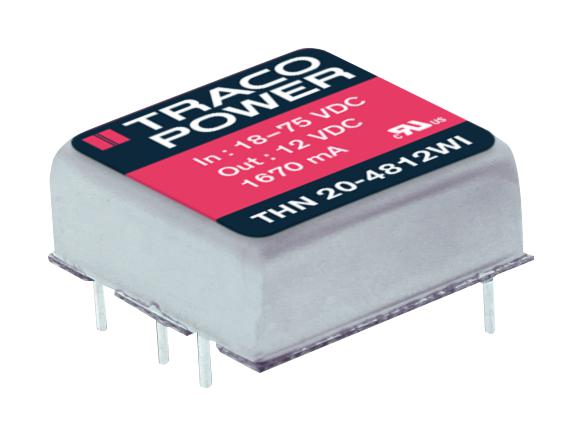

TRACO POWER - THN 20-4812WI - Isolated Through Hole DC/DC Converter, ITE, 4:1, 20 W, 1 Output, 12 V, 1.67 A
- No. of Outputs: 1 Output
- Output Power Max: 20W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 1.67A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: THN 20WI Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 75V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: -
- Width: 25.4mm
- Height: 9.9mm
- Depth: 25.4mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: cUL, UL
- Approvals & Standards: UL
- Efficiency: 89%
- Isolation Voltage: 1.5kV
- No. of Outputs: 1Outputs
- Power Rating: 20W
- Supply Voltage: 48V
