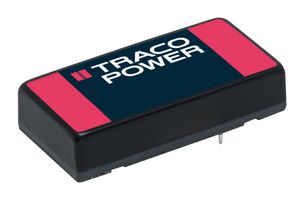

THR 10-7222WI - Isolated Through Hole DC/DC Converter, ITE, 4:1, 10 W, 2 Output, 12 V, 417 mA - TRACO POWER

TRACO POWERUGS :THR 10-7222WI Code de commande:3911058

Prix:
Prix ​​promotionnel€61,62

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documenten en downloads

description

  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • Depth: 50.8mm
  • Height: 11mm
  • Input Ratio: 4:1
  • Input Voltage DC Max: 160V
  • Input Voltage DC Min: 40V
  • Input Voltage DC Nom: 110V
  • Isolation Voltage: 3kV
  • No. of Outputs: 2 Output
  • Output Current - Output 1: 417mA
  • Output Current - Output 2: 417mA
  • Output Power Max: 10W
  • Output Regulation: Regulated
  • Output Voltage - Output 1: 12V
  • Output Voltage - Output 2: -12V
  • Power Supply Applications: ITE
  • Product Range: THR 10WI Series
  • Width: 25.4mm
