TLLG4400 LED, 3MM, GREEN, 1.2MCD, 575NM VISHAY

VISHAYUGS :TLLG4400 Code de commande:1612435

Prix:
Prix ​​promotionnel€1,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5886 unité)

Documents et téléchargements

description

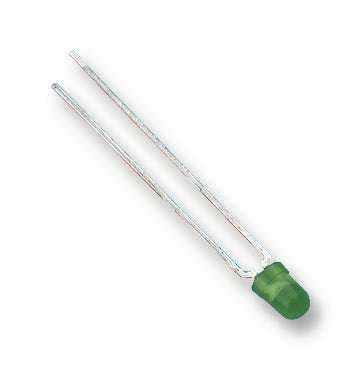

VISHAY - TLLG4400 - LED, Green, Through Hole, T-1 (3mm), 2 mA, 2.4 V, 575 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: T-1 (3mm)
  • Forward Current If: 2mA
  • Forward Voltage: 2.4V
  • Wavelength Typ: 575nm
  • Luminous Intensity: 1.2mcd
  • Viewing Angle: 25°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: T-1 (3mm)
  • Dominant Wavelength: 575nm
  • Forward Current If Max: 2mA
  • Forward Voltage VF Max: 2.4V
  • LED / Lamp Size: 3mm / T-1
  • LED Type: Standard
  • Luminous Intensity Typ: 1.2mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
