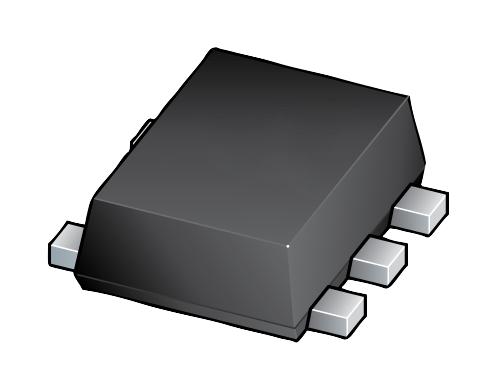

TEXAS INSTRUMENTS - TPD3E001DRLR - ESD Protection Device, SOT, 5 Pins, 950 mV, TPD3E
- Clamping Voltage Vc Max: -
- Diode Case Style: SOT
- No. of Pins: 5Pins
- Operating Voltage: 950mV
- Power Dissipation Pd: -
- Product Range: TPD3E Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 3
- Diode Type: Low Capacitance
- IC Function: 3-Channel ESD Protection Array for High-Speed Data Interface
- MSL: MSL 1 - Unlimited
- No. of Channels: 3Channels
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Supply Current: 1nA
- Supply Current Max: 100nA
- Supply Voltage DC Max: 5.5V
- Supply Voltage DC Min: 0.9V
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 900mV
- Supply Voltage Range: 900mV to 5.5V
- Termination Type: Surface Mount Device
