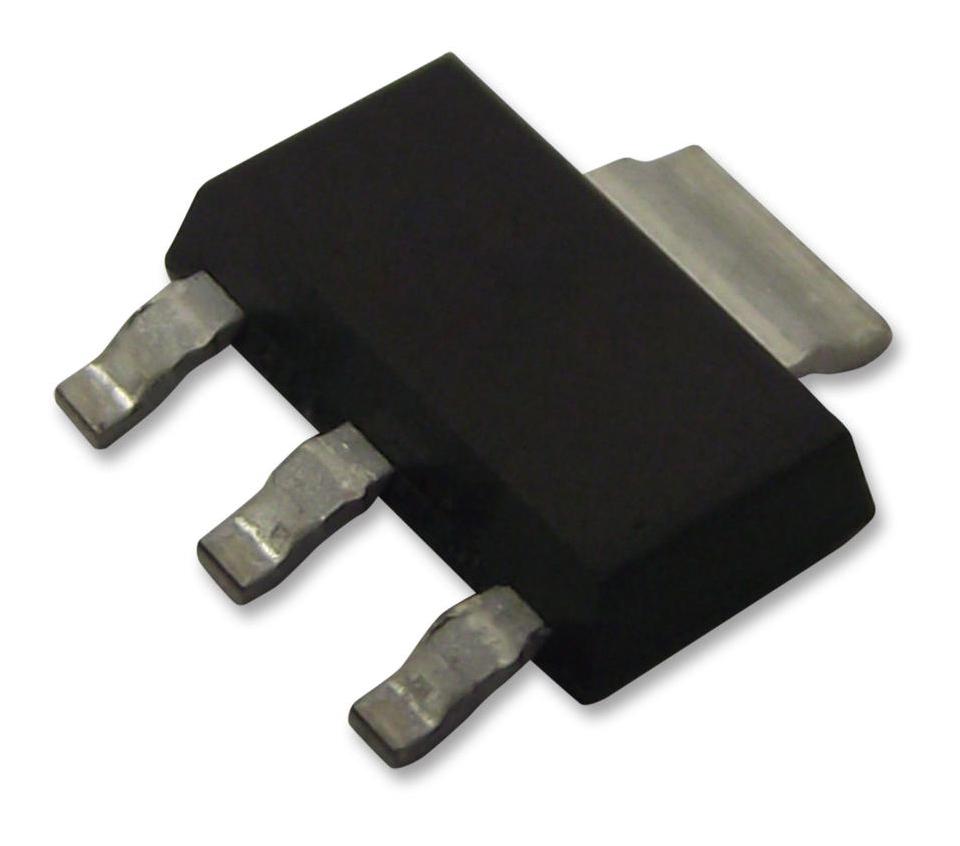

TAIWAN SEMICONDUCTOR - TS1117BCW33 RPG - Fixed LDO Voltage Regulator, 0V to 12V, 1.3V Dropout, 3.3Vout, 800mAout, SOT-223-3
- Output Type: Fixed
- Input Voltage Min: 0V
- Input Voltage Max: 12V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 800mA
- Dropout Voltage Vdo: 1.3V
- LDO Regulator Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Min: -20°C
- Operating Temperature Max: 85°C
- Product Range: 3.3V 800mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 2%
- Base Number: 1117
- Device Marking: TS1117CW-3.3
- External Depth: 1.8mm
- External Length / Height: 7.3mm
- External Width: 6.85mm
- IC Package (Case style): SOT-223
- Lead Spacing: 2.35mm
- No. of Outputs: 1Outputs
- Operating Temperature Range: -20°C to +85°C
- Operating Voltage Tolerance +: 2%
- Output Current Max: 1A
- Output Voltage Nom.: 3.3V
- Primary Input Voltage: 7V
- Supply Voltage Min: 6.5V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Positive Fixed LDO
