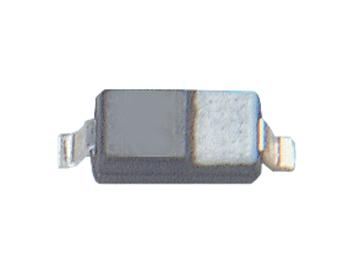

UCLAMP1201H.TCT Diode, TVs, 12V Semtech

SEMTECHUGS :UCLAMP1201H.TCT Code de commande:1456421

Prix:
Prix ​​promotionnel€1,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (952 unité)

Documents et téléchargements

description

SEMTECH - UCLAMP1201H.TCT - TVS Diode, µClamp, Unidirectional, 12 V, 25 V, SOD-523, 2 Pins

  • Product Range: µClamp Series
  • TVS Polarity: Unidirectional
  • Reverse Stand-Off Voltage Vrwm: 12V
  • Clamping Voltage Vc Max: 25V
  • Diode Case Style: SOD-523
  • No. of Pins: 2Pins
  • Breakdown Voltage Min: 13.3V
  • Breakdown Voltage Max: 13.3V
  • Peak Pulse Power Dissipation: 200W
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Breakdown Voltage: 13.3V
  • Breakover Voltage Min: 13.3V
  • Capacitance Cd @ Vr Typ: 60pF
  • Clamping Voltage @ 8/20µs Max: 25V
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current Ippm: 8A
  • Power Dissipation Pd: 200W
  • Stand-off Voltage: 12V
  • Termination Type: Surface Mount Device
