UCW1H101MNL1GS Cap, 100µF, 50V, Radial, SMD NICHICON

NICHICONUGS :UCW1H101MNL1GS Code de commande:1580583

Prix:
Prix ​​promotionnel€0,79

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (19428 unité)

Documents et téléchargements

description

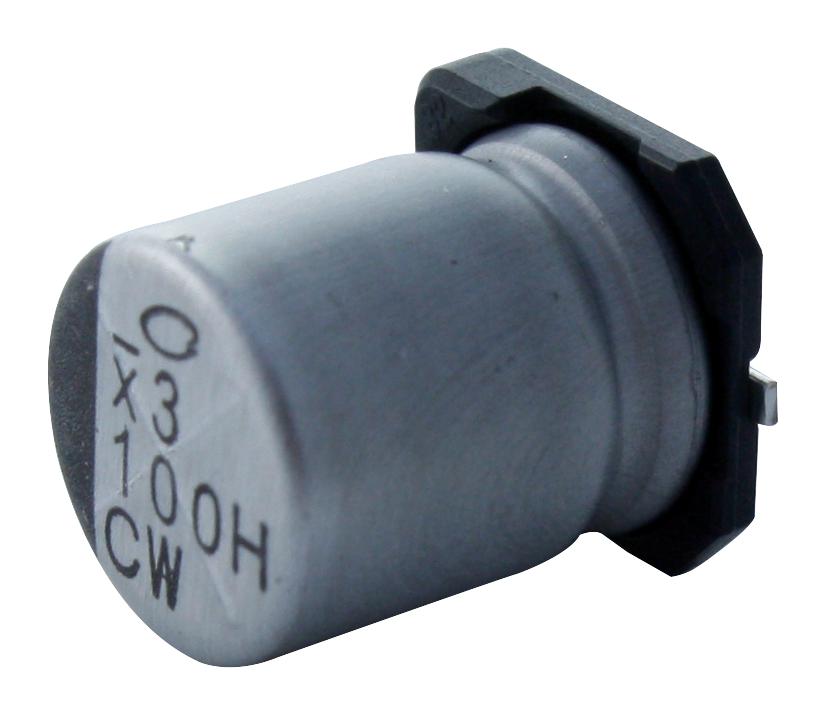

NICHICON - UCW1H101MNL1GS - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 100 µF, 50 V, 7000 hours @ 105°C, Polar

  • AE Capacitor Case: Radial Can - SMD
  • Capacitance: 100µF
  • Voltage Rating: 50V
  • ESR: -
  • Product Range: CW Series
  • Lifetime @ Temperature: 7000 hours @ 105°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Max: 105°C
  • Ripple Current AC: 350mA
  • Diameter: 8mm
  • Height: 10mm
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Tolerance: ± 20%
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Case Style: Radial Can - SMD
  • External Depth: 8.3mm
  • External Length / Height: 10mm
  • External Width: 8.3mm
  • Impedance: 0.53ohm
  • Leakage Current: 3µA
  • Operating Temperature Range: -25°C to +105°C
  • Operating life Time: 7000h
