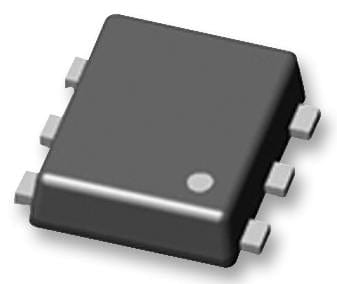

ROHM - US6M2TR - Dual MOSFET, Complementary N and P Channel, 30 V, 1.5 A, 0.24 ohm, TUMT, Surface Mount
- Transistor Polarity: N and P Channel
- Continuous Drain Current Id: 1.5A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 0.24ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 1W
- Transistor Case Style: TUMT
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Continuous Drain Current Id, N Channel: 1.5A
- Continuous Drain Current Id, P Channel: -1A
- Current Id Max: 1.5A
- Drain Source Voltage Vds, N Channel: 30V
- Drain Source Voltage Vds, P Channel: -20V
- Module Configuration: Dual
- On Resistance Rds(on), N Channel: 0.17ohm
- On Resistance Rds(on), P Channel: 0.28ohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 30V
- Voltage Vgs Rds on Measurement: 4.5V
