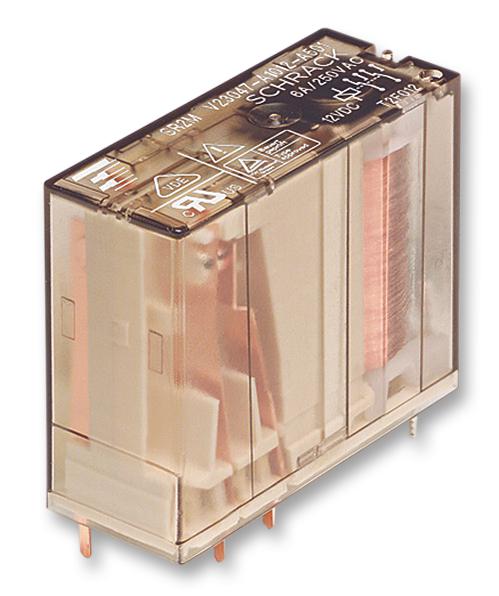

V23047-A1024-A511 Relay, Safety, SPST-NO, NC, 250VAC, 6a SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYUGS :1-1393258-7 Code de commande:1652616

Prix:
Prix ​​promotionnel€16,71

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3783 unité)

Documents et téléchargements

description

SCHRACK - TE CONNECTIVITY - V23047-A1024-A511 - Safety Relay, 24 VDC, SPST-NO, SPST-NC, V23047, Through Hole, 6 A, Solder

  • Coil Voltage: 24VDC
  • Contact Configuration: SPST-NO, SPST-NC
  • Product Range: V23047 Series
  • Relay Mounting: Through Hole
  • Contact Current: 6A
  • Relay Terminals: Solder
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 24V
  • Contact Material: Silver Nickel
  • IP Rating: -
  • SVHC: No SVHC (12-Jan-2017)
  • Coil Resistance: 823ohm
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 6A
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 400V
  • External Depth: 29mm
  • External Height: 25.5mm
  • External Length / Height: 29mm
  • External Width: 12.6mm
