V42MLA1206NH Varistor, 1206, 42V LITTELFUSE

LITTELFUSEUGS :V42MLA1206NH Code de commande:1816943

Prix:
Prix ​​promotionnel€1,22

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (477 unité)

Documents et téléchargements

description

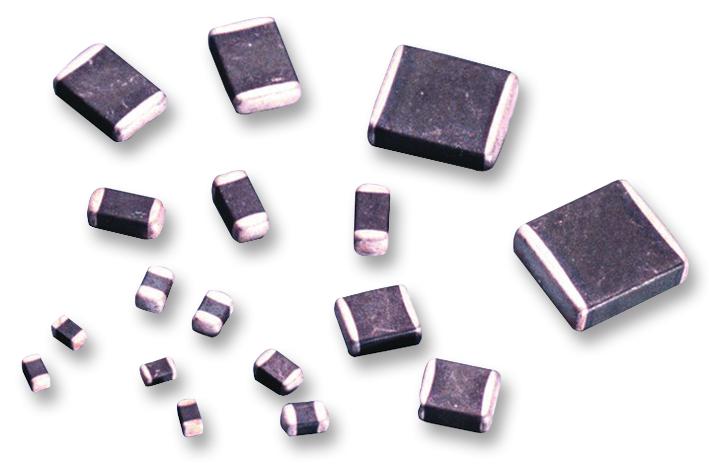

LITTELFUSE - V42MLA1206NH - TVS Varistor, 30 V, 42 V, MLA, 92 V, 1206 [3216 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 30V
  • Voltage Rating V DC: 42V
  • Product Range: MLA Series
  • Clamping Voltage Vc Max: 92V
  • Varistor Case Style: 1206 [3216 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 180A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 800mJ
  • Automotive Qualification Standard: -
  • Capacitance: 425pF
  • Clamping Voltage: 92V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 180A
  • Suppressor Type: Varistor
  • Surge Current: 180A
  • Varistor Voltage @ 1mA: 46V
  • Varistor Voltage @ 1mA Max: 60V
