V47ZA3P Varistor, 4.5J, 30VAC LITTELFUSE

LITTELFUSEUGS :V47ZA3P Code de commande:1757263

Prix:
Prix ​​promotionnel€0,71

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (541 unité)

Documents et téléchargements

description

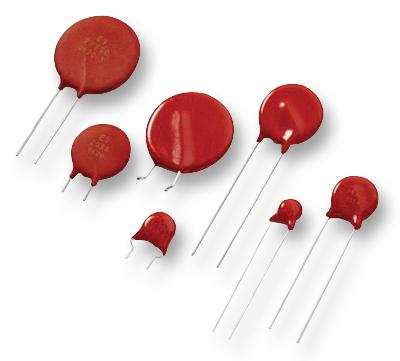

LITTELFUSE - V47ZA3P - TVS Varistor, MOV, 30 V, 38 V, ZA, 93 V, Disc 10mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 30V
  • Voltage Rating V DC: 38V
  • Product Range: ZA Series
  • Clamping Voltage Vc Max: 93V
  • Varistor Case Style: Disc 10mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 500A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 4.5J
  • Automotive Qualification Standard: -
  • Body Diameter: 10mm
  • Capacitance: 2590pF
  • Clamping Voltage: 93V
  • Clamping Voltage @ 8/20µs Max: 93V
  • Device Marking: P47Z3
  • Operating Temperature Range: -55°C to +85°C
  • Peak Pulse Current IPP @ 8/20µs: 500A
  • Suppressor Type: Varistor
  • Surge Current: 500A
  • Varistor Voltage @ 1mA: 47V
  • Varistor Voltage @ 1mA Max: 52V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
