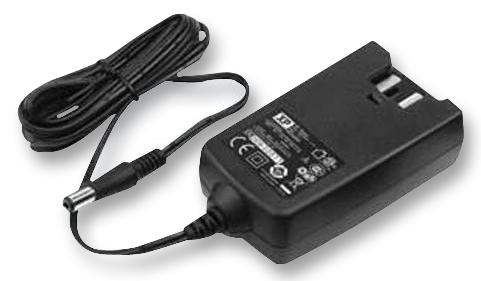

XP POWER - VEP24US09 - AC/DC Power Supply, ITE & Medical, 1 Output, 19.8 W, 9 V, 2.2 A
- No. of Outputs: 1 Output
- Output Power Max: 19.8W
- Output Voltage - Output 1: 9V
- Output Current - Output 1: 2.2A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Connector: Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 80V AC to 264V AC
- Product Range: VEP24 Series
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approval Bodies: CSA, EN, IEC, UL
- Approvals / Standards: cCSAus 60601, CSAC22.2 No.60601, IEC 60601, UL 60601
- Efficiency: 77%
- External Depth: 47.9mm
- External Length / Height: 29mm
- External Width: 88mm
- Height: 29mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 80V
- Isolation Voltage: 4000V
- Lead Length: 1.8m
- Length: 47.9mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 40°C
- Operating Temperature Min: 0°C
- Output Current Max: 2.2A
- Output Ripple Voltage pk-pk: 100mV
- Power Rating: 19.8W
- Width: 88mm
