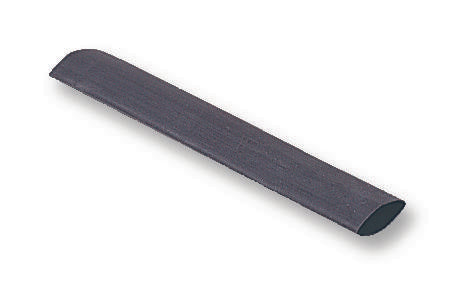

PRO POWER - VFFC-3/4-0-STK - Heat Shrink Tubing, VFFC Series Polyolefin, 2:1, 0.748 ", 19 mm, Black, 3.9 ft, 1.2 m
- Shrink Ratio: 2
- I.D. Supplied - Imperial: 0.748"
- I.D. Supplied - Metric: 19mm
- Shrink Tubing / Boot Colour: Black
- Length - Imperial: 3.94ft
- Length - Metric: 1.2m
- I.D. Recovered Max - Imperial: 0.374"
- I.D. Recovered Max - Metric: 9.5mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Product Range: -
- Accessory Type: Heat Shrink
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 20.4mm
- Cable Diameter Min: 9.5mm
- Colour: Black
- Dielectric Strength: 20kV/mm
- Flammability Rating: VW-1
- Fully Shrunk Diameter: 9.5mm
- I.D. Max Recovered: 9.5mm
- I.D. Supplied: 19mm
- Internal Diameter: 19mm
- Length, Imperial: 3.94ft
- Material: Irradiated Polyolefin
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Length (Imperial): 3ft
- Reel Length (Metric): 1.2m
- Shrink Temperature: 80°C
- Shrink Type: Heat
- Unshrunk Diameter: 19mm
