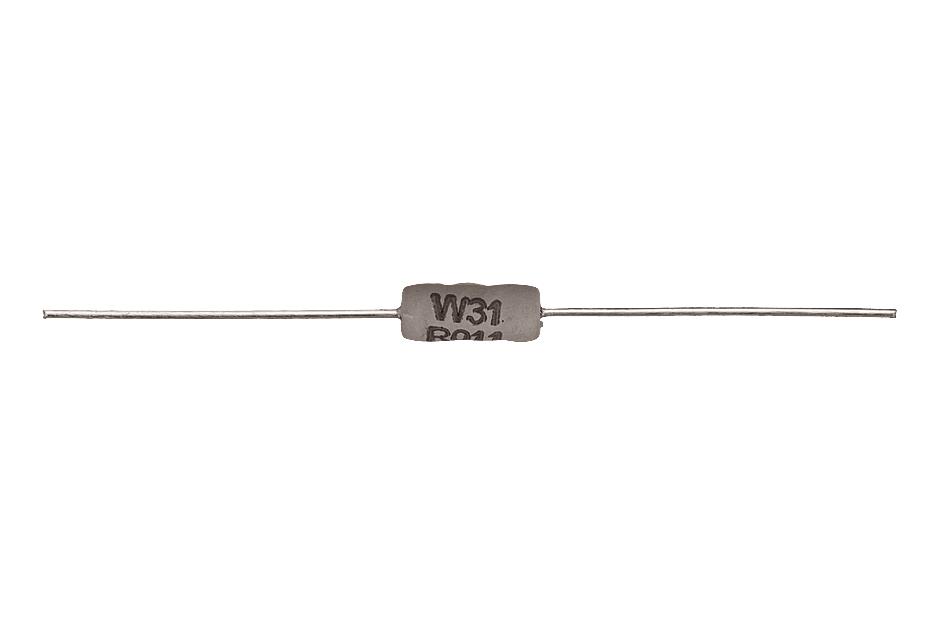

W31-R033 Ji Res, 0R033, 5%, 3W, Axial, Wirewound TT Electronics / WELWYN

TT ELECTRONICS / WELWYNUGS :W31-R033 JI Code de commande:9497137

Prix:
Prix ​​promotionnel€4,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (261 unité)

Documenten en downloads

description

  • Resistance: 0.033ohm
  • Product Range: W31 Series
  • Power Rating: 3W
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 100V
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 500ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 5.6mm
  • Element Limiting Voltage: 100V
  • External Length / Height: 13mm
  • Full Power Rating Temperature: 25°C
  • Lead Diameter: 0.8mm
  • Lead Length: 22.75mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 500ppm/°C
  • Temperature Coeff. -: 500ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
