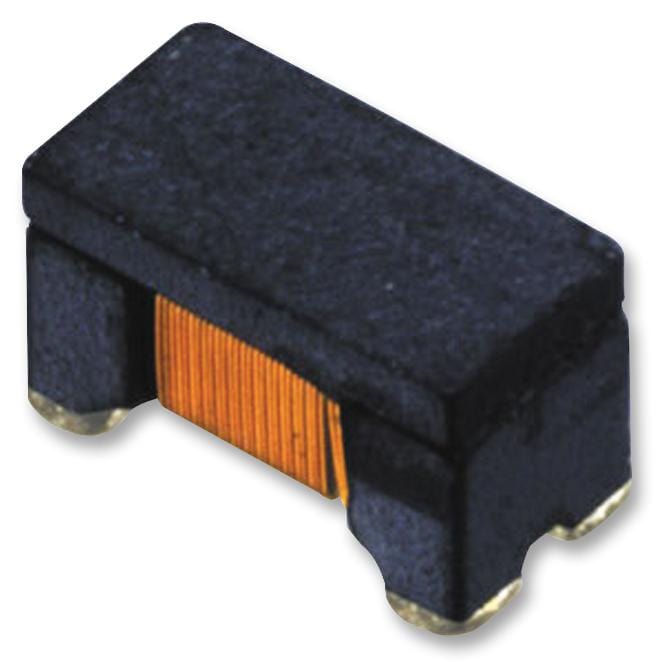

MULTICOMP PRO - WL02KT3N3 - Wirewound Inductor, 3.3 nH, 0.066 ohm, 7 GHz, 840 mA, 0402 [1005 Metric], WL02
- Inductance: 3.3nH
- Product Range: WL02 Series
- DC Current Rating: 840mA
- High Frequency Inductor Case: 0402 [1005 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.066ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 7GHz
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 0.76mm
- External Length / Height: 0.61mm
- External Width: 1.27mm
- Inductor Case Style: 0402 [1005 Metric]
