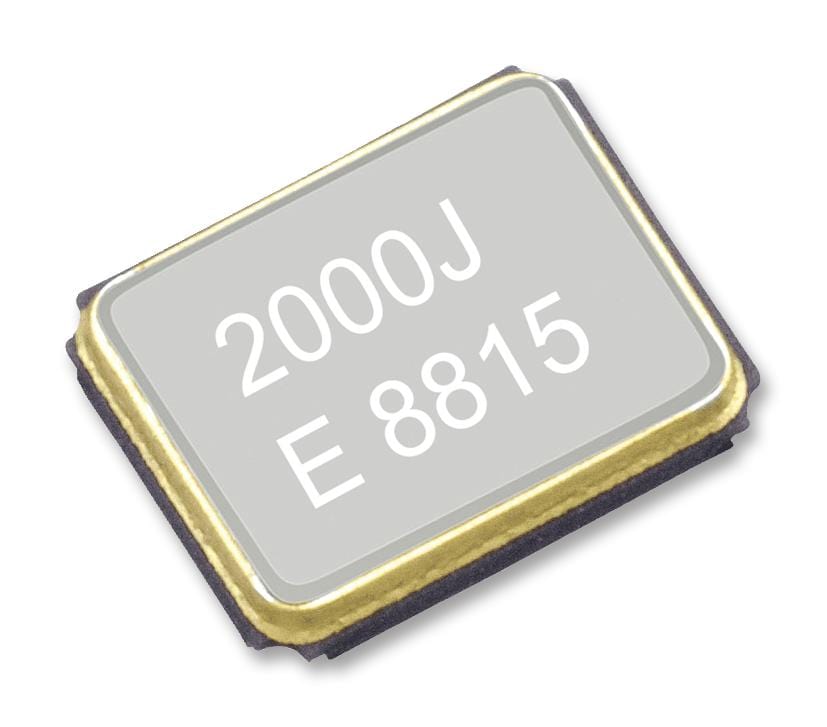

EPSON - X1E0000210132 TSX-3225 25 MHZ 9.0PF - Crystal, 25 MHz, SMD, 3.2mm x 2.5mm, 10 ppm, 9 pF, 10 ppm, TSX-3225
- Frequency Nom: 25MHz
- Crystal Case: SMD, 3.2mm x 2.5mm
- Frequency Stability + / -: 10ppm
- Load Capacitance: 9pF
- Frequency Tolerance + / -: 10ppm
- Product Range: TSX-3225 Series
- Operating Temperature Min: -20°C
- Operating Temperature Max: 75°C
- Crystal Mounting Type: SMD
- Frequency: 25MHz
- Frequency Stability: ± 10ppm
- No. of Pins: 4Pins
- Operating Temperature Range: -20°C to +75°C
- Output Frequency: 25MHz
- Temperature Stabilty: ± 10ppm
