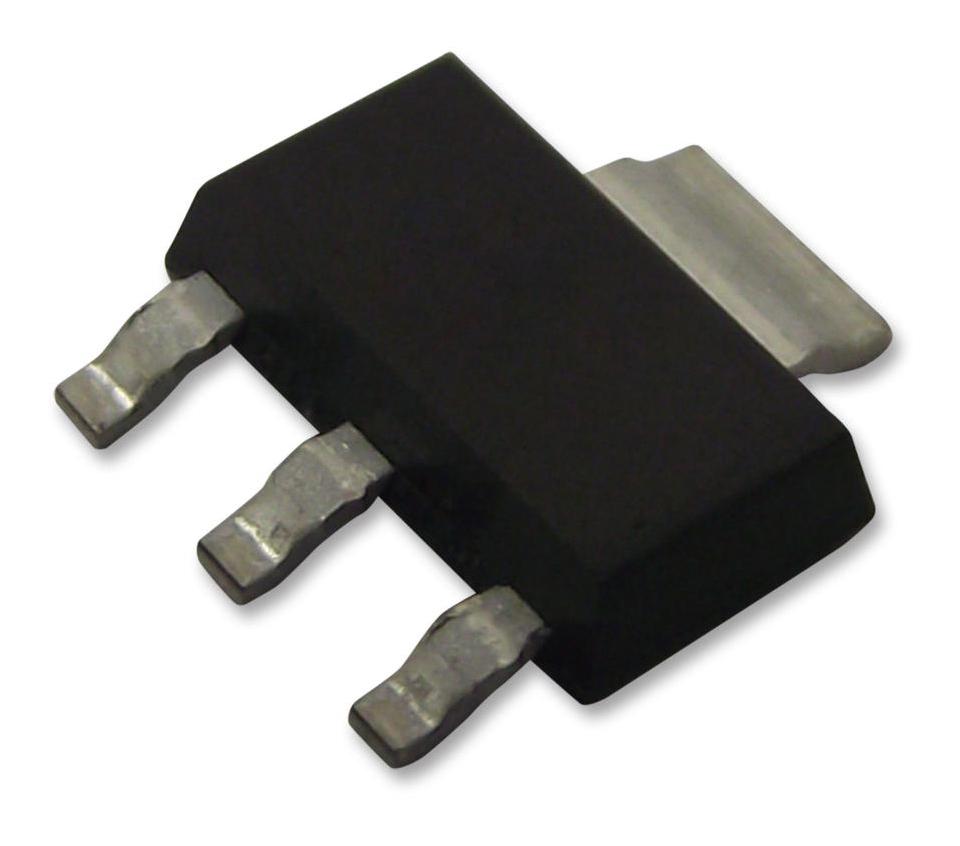

DIODES INC. - ZXMP4A16GTA - Power MOSFET, P Channel, 40 V, 6.4 A, 0.06 ohm, SOT-223, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 6.4A
- Drain Source Voltage Vds: -40V
- On Resistance Rds(on): 0.06ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: -1V
- Power Dissipation Pd: 3.9W
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Current Id Max: -6.4A
- Current Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- No. of Transistors: 1
- On State Resistance Max: 60mohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 3.9W
- Pulse Current Idm: 21A
- SMD Marking: ZXMP4A16
- Termination Type: Surface Mount Device
- Voltage Vds Typ: -40V
- Voltage Vgs Max: -20V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Min: -1V
